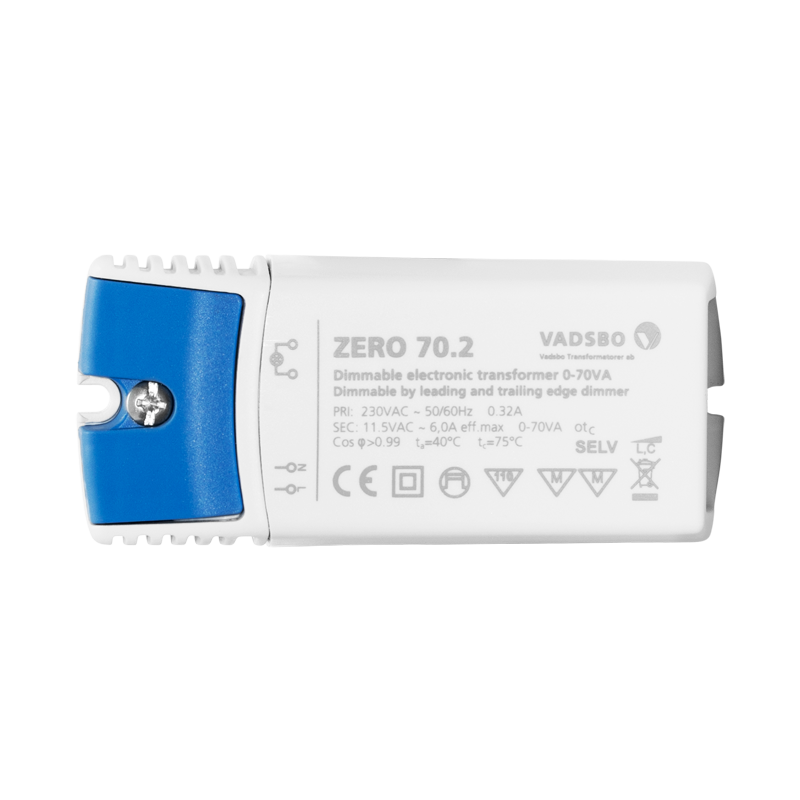

Transformer Zero 70.2

The ZERO 70.2 all-dimmer transformer starts at 0W. The low minimum load makes it very suitable for 12Vac MR16 LED as well as halogen. ZERO 70.2 is dimmable with both rear and front edge dimmers.



E79 804 75
SKU: V-1507020Z2-1 Category:

Description

Installation instructions

  • Indoor installation only
  • Connected load must be 0-70VA
  • Primary and secondary connections must not be crossed
  • The distance between the lamp and the transformer must be at least 30 cm
  • No ground connection required
  • Sec. the cable must not exceed 2 meters.





Secondary voltage 220-240V 50-60Hz
Rated power, halogen lamps 11,5Vrms
Rated power, 12 VAC LED-lights.
0-70VA/W
Depending on the make, the LED can consume up to the double rated power (reactive power).
0-70VA
Rated current, primary 0,32A
Ambient temperature 40 °C
Tc-temperature 75 °C
Primary connection
Screw terminal 2,5 mm2
Secondary connection
Screw terminal 2,5 mm2
Protection against
– Short circuit with automatic reset Yes
– Overload Yes
Overheating with automatic reset
Yes
Protectionclass II
IP-class IP20
Approved for installation on furniture Yes
Dimmable with rear and front edge dimmer Yes
CE marked Yes
