| Designation |
VDWCM White
|
| E-number | White: V-40V0009-501Y Black: V-40V0009-502Y |
| Item number | White: E13 610 21 Black: E13 610 22 |
| Effect | 9W |
| Input voltage | 220-240Vac |
| Frequency, input | 50Hz |
| Frequency, output | 14,8kHz |
| Radio frequencies | 2402MHz-2480MHz |
| Maximum radio frequency effect | 4dBm |
| Standby effect | <0,5W |
| Control | Rotary control or Casambi |
| Memorizes last set mode | Yes, even in the event of a power cut |
| Overheating protection | Yes |
| Installation | Coupling box or surface-mounted box |
| Colour |
White:
Pure White (RAL9010)
Signal White (RAL9003) Black: Jet Black (RAL9005)
Graphite Grey (RAL7024 |
| Working humidity | 0…80%, non-condensing |
| Working temperature | -20°C to + 40°C |
| Dimensions LxWxD | 87x87x40mm |
| Weight | 118g |
| Cable area | 2,5mm^2 (AWG 22) |
| Max. cable length secondary side | 10m |
| Protective material | Polykarbonat (PC) |
| Areas of use (Options) | Constant voltage (CV) or constant current (CC) dimmable LED |
| Insulation class | IP20 |
| Protection class | II |
| Approvals | CE, UKCA |

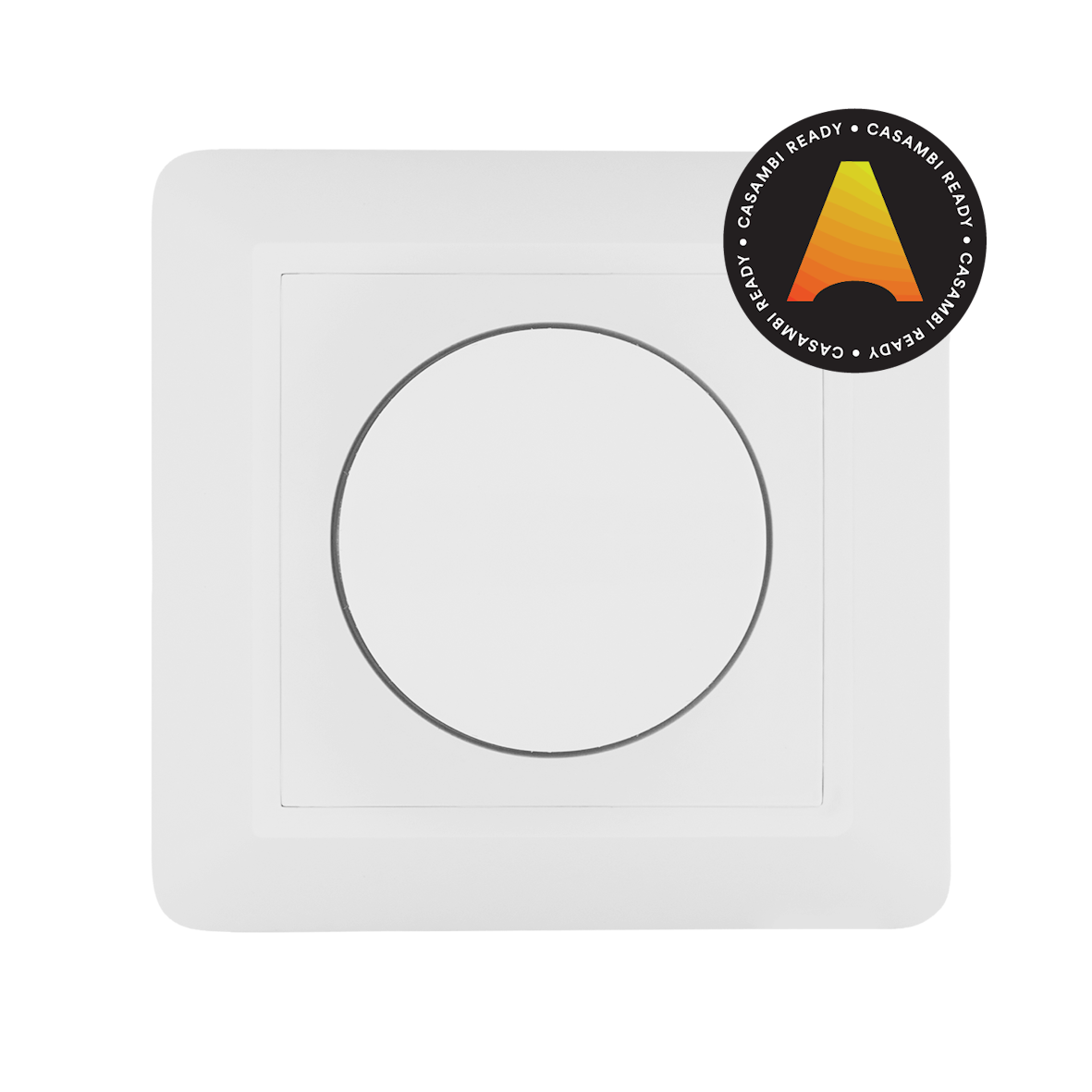

Rotary dimmer VDWCM White
Intuitively control whatever you want in the room with VDWCM. The rotary dimmer for Casambi, enables simple light regulation for the user. Sold complete with centre plates and knob adapted to Exxact, Elko and Gira. Available in white and black.
